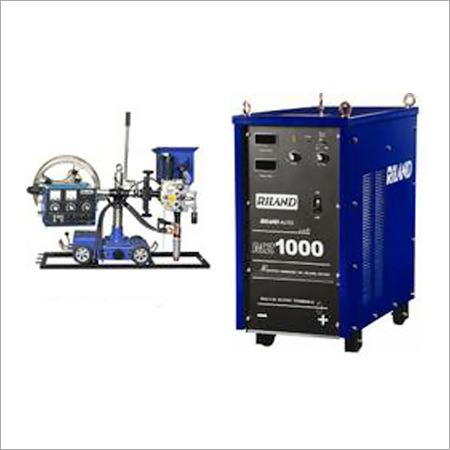

SAW Welding Machine

SAW Welding Machine
SAW Welding Machine
Product Code : 14
Product Description

Leveraging on our immense industry experience, we are offering our clients a quality range of SAW Welding Machine. This machine widely is used in the welding of carbon steels, low alloy steels, stainless steels, nickel based alloys and many more. Manufactured using supreme grade components with the help of latest techniques, the offered machine is available in various specifications as per the exact needs of the clients. We are offering this SAW Welding Machine in different specifications at the most affordable price to the clients.

Features:

  • Sturdy construction

  • Maintenance free

  • Energy efficient

  • Long service life

Features of Power Source :

  • Soft switch technology, high efficiency, low power consumption

  • Automatic protection from over current, over temperature, over/under voltage, phase lacking

  • Stepless current & voltage adjustments

  • Power source is suitable for MMA & Gauging also.

  • Digital display of current, voltage & trolley speed

  • One machine two functions, high using ratio

  • Automatic voltage fluctuation control device up to 15%

  • With Double Full –Bridge Heavy Duty IGBT Inverter to provide you very strong Power.

  • Flexible wire feeding speed, stable arc , deep penetration & smooth welding results

Item Code: MZ-1000
Features of SAW Trolley (Welding Trolley):

  • Trolley is driven by two wheels, moves stably, wide welding range

  • Flexible adjustments, head can be lifted and turned around

  • Beam can be lifted and turned around

  • Turn around and moving angle of flux container can be adjusted as required

  • Four wheel driven wire feeding system is equipped with aligning instrument, feeding

  • wire stably and correctly, and with high driven force


Technical Specifications :-

Parameters

MZ 1000

Rated Input Voltage (V)

Three Phase (415 + 15%)V, 50 Hz

Rated Power at Max Current (kVA)

56

Rated Output Current (Amp)

112-1000

Rated Output Voltage (V)

44

Duty Cycle

80%

Wire Feed Mechanism

External

Open Circuit Voltage Max (V)

72

Efficiency at Max Current (%)

85

Insulation Grade & House Protection Grade

F & IP 21

Weight (kg)

85

Dimension(L x W x H, mm)

760 x 380 x 820


Applications :-

Pressure Vessel, Boilers, Heat Exchanger Shell , Heavy fabrication etc.

Technical Specifications :-

Item Description

Parameter

Rated input voltage of marching part

Pilot motor DC 110V (PMG)

Rated input voltage of wire feeding part

Pilot motor DC 110V (exciter)

Welding speed

0~1.2m/min.

Wire feeding speed

0.3~3.0m/min

Vertical adjustment range of beam

100m

Adjustment range of head

100 x 100 x 70
(up and down, right & left, back & front)

Turning angle of beam around the tractor

±90°

Deflection angle of welding torch

±45°

Deflection angle of welding torch

±90°

Capacity of flux container

6L

Capacity of wire container

25 Kg.

Weight

54 Kg.
